Technical Data (Coupe quattro 20V) |
|
|
Engine & Transmission |
|

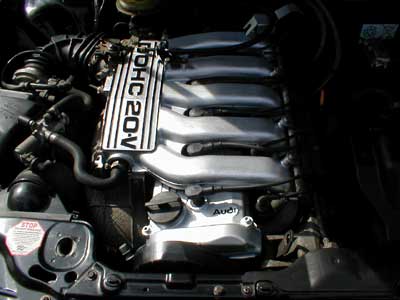

| Engine Type | In-line 5 cylinder (7A engine), cast iron block, aluminium alloy head, forged steel crankshaft, dual overhead camshafts, hydraulic lifters, four valves per cylinder, sodium filled |
| Firing order | 1 - 2 - 4 - 5 - 3 |
| Bore x stroke (mm) | 82.5 x 86.4 |
| Displacement (c.c.) | 2309 |
| Max. Power bhp (kW) | 170 (125) @ 6000 r.p.m. |
| Max. torque Nm (lb.ft) | 220 (162) @ 4500 r.p.m. |
| Compression Ratio | 10.3:1 |
| Induction | Electronic Multipoint injection (MPI), dual map electronic ignition, cylinder selective knock control via dual knock sensors |
| Transmission | Via single plate dry clutch with hydraulic operation. Fully synchronised 5 speed manual gearbox, automatic locking "Torsen" inter axle differential (balancing front and rear drive) to integrated front axle differential and via propeller shaft to lockable rear axle differential. |
| Gear ratios | 1st - 3.55:1 2nd - 2.11:1 3rd - 1.43:1 4th - 1.03:1 5th - 0.84:1 (21.6 mph/1000 r.p.m.) Reverse - 3.50:1 Final drive - 4.11:1 |
| Running gear | Suspension front and rear by uprated coil springs with gas filled shock absorbers - all elements combined in spring struts. Anti-roll bar front. Independent suspension front and rear by MacPherson struts and lower wishbones, negative rolling radius |
| Steering | Maintenance free rack and pinion with power assistance. Safety steering column with disconnecting element |
| Braking System | Dual circuit brake system with disc brakes front and rear, ventilated at the front. Brake servo, brake pressure regulator, 3 channel ABS anti-lock brake system standard. |
| Front Discs (Ventilated) | 276mm (10.9in), dual piston caliper |
| Rear Discs (solid) | 245mm (9.6in), single piston caliper |
|
Body |
|
| Fully galvanised unitary construction all steel body with deformation zones front and rear. 0.36 Cd | |
|
Dimensions |
|
| Length/Width/Height mm (in) | 4366/1716/1365 (171.9/67.6/53.7) |
| Wheelbase mm (in) | 2549 (100.4) |
| Track front/rear mm (in) | 1453/1437 (57.2/56.6) |
| Ground clearance mm (in) | 110 (4.3) |
| Turning circle m (ft) | app. 11.1 (36.4) |
| Comfort length m (ft) | 1891 (74.4) |
| Front elbow room mm (in) | 1360 (56.5) |
| Seating area m2 (ft2) | 2.57 (27.7) |
|
Luggage Space UDA - seat backrests folded |
227 907 |
| Fuel Tank Capacity litres (Imp. Gals.) | 70 (15.4) |
| Wheels | Light alloy 7J x 15 Speedline 6 spoke, 37mm offset, 4 x 108 bolt pattern (full size spare) |
| Tyre size | 205/60 R15V radial ply (optional winter size 195/65 15 M+S) |
| Alternator | 90A max |
|
Weights |
|
| Unladen weight Kg (lbs) | 1320 (2911) |
| Gross weight limit Kg (lbs) | 1780 (3925) |
| Axle load limits front/rear Kg (lbs) | 950/950 (2095/2095) |
| Trailer load limits Kg
(lbs) - braked 10% gradient - unbraked |
1500 (3308) 640 (1411) |
| Weight Distribution front/rear (%) | 58 / 42 |
|
Performance |
|
| Top Speed | 137 mph |
| 1/4 mile | 16.5 sec / 85 mph |
| 0-50 mph | 5.5 sec |
| 0-60 mph | 8.1 sec |
| 0-70 mph | 11.7 sec |
| 30-50 mph (3rd gear) | 5.0 sec |
| 30-50 mph (4th gear) | 8.3 sec |
| 50-70 mph (4th gear) | 8.8 sec |
| 50-70 mph (5th gear) | 12.0 sec |
| 60 - 0 mph | 138 ft |
| 70 - 0 mph | 179 ft |
|
Fuel Consumption |
|
| (acc to Passenger car fuel
consumption order 1983) SUDC mph @ 56 mph @ 75 mph Fuel type Min. Octane number |
19.9 35.8 30.4 Premium Unleaded 95 |
